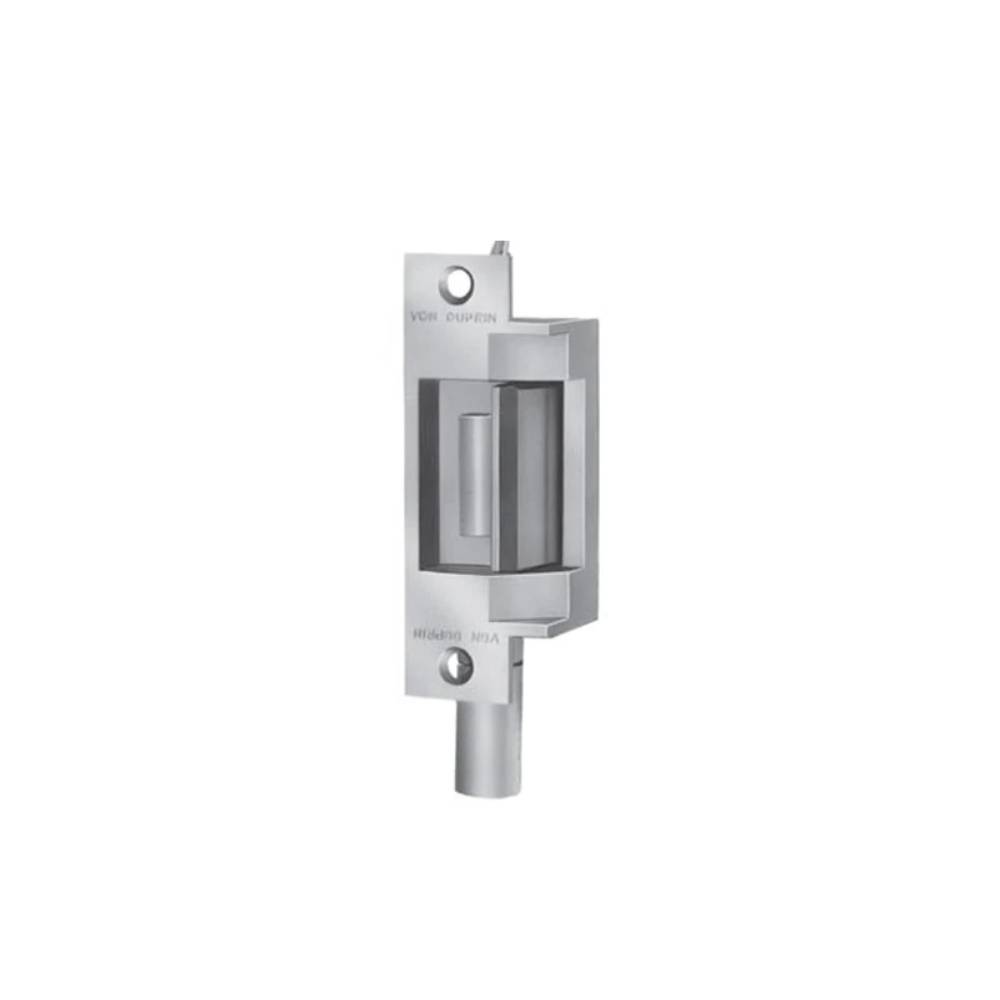

Von Duprin – 6211-12V-US32 – Electric Strikes Fail Secure – 12VDC – 4-7/8 x 1-1/4 Faceplate with Mortise Locks on Single Doors – Aluminum – Satin Stainless Steel Finish
Von Duprin – 6211-12V-US32 – Electric Strikes Fail Secure – 12VDC – 4-7/8″ x 1-1/4″ Faceplate with Mortise Locks on Single Doors – Aluminum – Satin Stainless Steel Finish
Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.
The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse
Features:
- Non handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
- ANSI 156.5 Grade 1, 1500 lb hold-force rated
- UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Von Duprin |
| SKU | 6211 12V US32 |
| UID | VON100621112VUS32 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Single Door |
| UL Listing Type | UL 10C, 1034 |
| Restrictions | None |
| BAA Qualified | Yes |
Technical Specifications:
| Function | Electrically Unlocked (Fail Secure) |
| Operating Voltage | 12VDC |
| Amp Draw | 600mA |
| Keeper Size | Pullman Keeper |
| Configuration | Centered |
| For Use With | Cylindrical/Mortise Locks |
| Faceplate Size | 4-7/8″ x 1-1/4″ |
| Frame Depth | 1-21/32″ |
| Ramp Cut Out | 3-3/8″ |
| Fire Rated | Yes |
| Frame Application | Hollow Metal or Aluminum |
| Product Type | Electric Strikes |
Installation Instructions:
- Single Doors Installation Instructions
