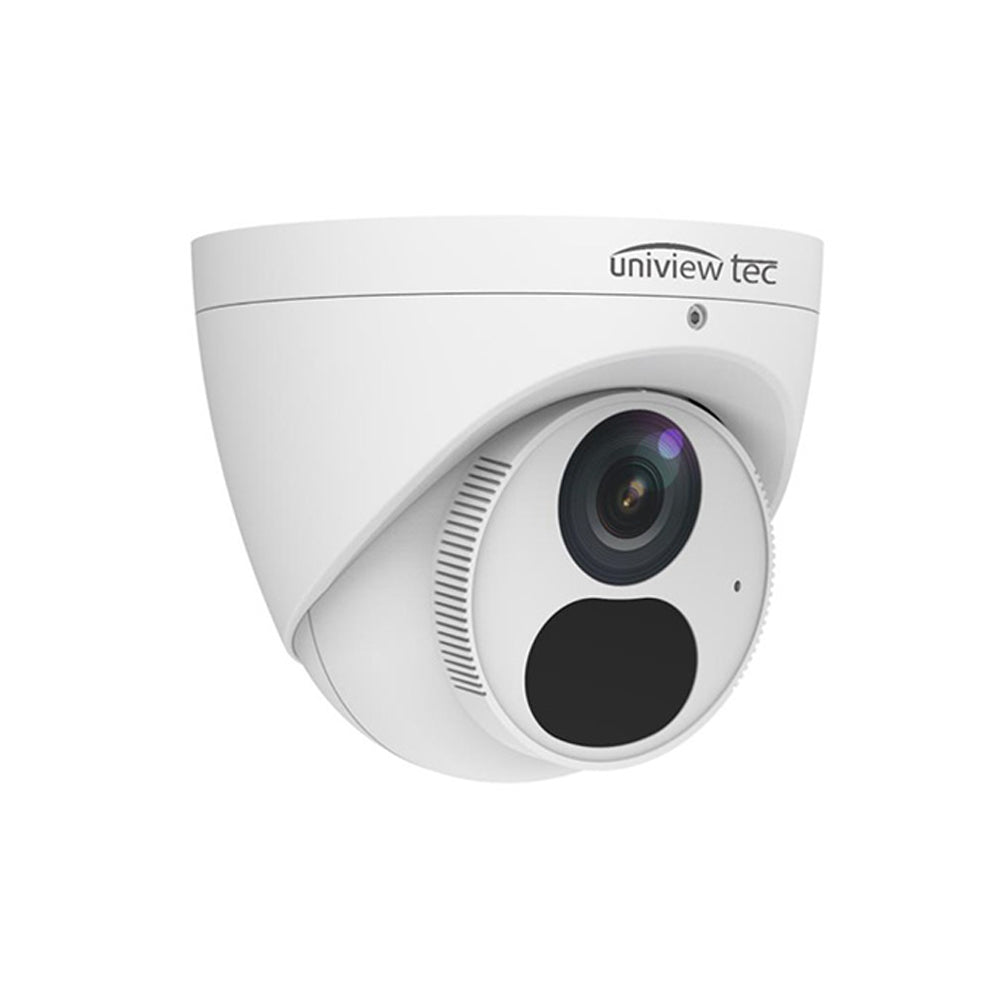

Uniview Tec IPT4K28AIX IR Turret Dome Camera 2.88mm 4k 8MP True Day/Night WDR Fixed Lens Built-in Microphone
Uniview Tec IPT4K28AIX IR Turret Dome Camera 2.88mm 4k 8MP True Day/Night WDR Fixed Lens Built-in Microphone
Key Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4K (8MP), 3840 x 2160 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8 fixed, wide-angle lens and One-way Audio with Built-in Microphone
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Backlight Compensation, Corridor Mode, Defog and 3D DNR (Digital Noise Reduction)
- Triple Video Streams, ONVIF Profile S Compliant
- Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- IP67 Weather Resistant Housing and PoE & 12VDC Power Options
- 3-Way Axis and Optional Wall, Junction Box and Pole Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Camera:
| Sensor | 1/2.7″, progressive scan , 8 megapixel, CMOS |
| Lens / Angle of View (H x V) | 2.8mm @ F2.0 / 112.4° x 60.1° |
| Shutter | Auto/Manual, 1/6 ~ 1/100000 s |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range / Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR | 120dB |
| Video Compression & Bit Rate | Ultra 265, H.265, H.264, MJPEG; 128 Kbps ~ 16 Mbps |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate/ Stream |
Main Stream: 8MP (3840*2160) @ Max. 20fps; Sub: 1080P (1920*1080) @ Max. 30fps Third: D1 (720*576), @ Max. 30fps |
| HLC, BLC, Defog, Flip, 9:16 Corridor, Dewarping |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
Network:
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, T, G), API |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| Network | RJ45, 10M/100M Base-T X Ethernet |
| Intelligent Perimeter Protection |
Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention |
General:
| Power | 12 VDC, PoE (IEEE802.3 af); Power consumption: Max 5W |
| Audio I/O & Compression | 1/0, w/ built-in MIC; G711 |
| Dimensions (Ø x H) & Weight | Φ110.5 x 94.1mm (Ø4.4 x 3.7”); 0.44kg (0.97lb) |
| 3-Axis Adjustment Range | Pan: 0°~360° Tilt: 0° ~ 80° Rotate: 0°~360° |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
