TownSteel – e-Smart 4000 – Electronic Push Button Deadbolt – Key Override – Satin Chrome – Grade 2
TownSteel – e-Smart 4000 – Electronic Push Button Deadbolt – Key Override – Satin Chrome – Grade 2

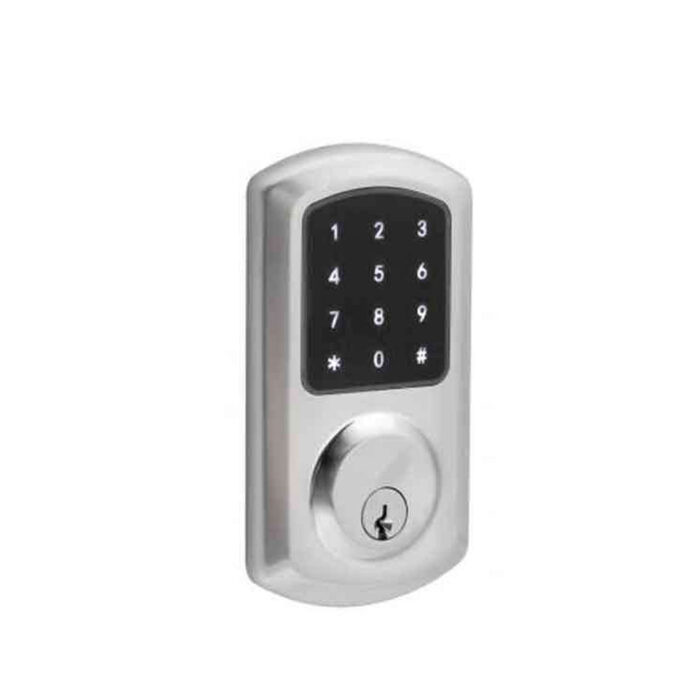

The e-Smart 4000 series deadbolt comes in a sleek, robust design and the security of a motorized deadbolt lock. It provides easy keyless access to your home using a highly responsive, 12-key touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up.
Specifications
| Access | 400 user codes interchangeable with RFID keycards/ stickers |
| Code Length | 6 to 10 digits, with anti-pry |
| Keypad | 12-Key Touch Illuminated Keypad |
| Programming |
RFID 13.56 Mhz |
| Power Supply | 4 AA Alkaline batteries |
| Battery Life | up to 1 year |
| System Settings | Passage Mode, Verification Mode, and Sound Adjustment |
| Power Supply | 4AA batteries |
| Battery Life | Up to 2 years |
| Lock Type | Motorized deadbolt lock |
| Cylinder | Schlage “C” keyway, |
| Door Prep | Standard 161 door prep |
| Door Thickness | 1-3/4” |
| Faceplate | 1″ x 2-1/4″ faceplate, plated finish |
| Backset | 2-3/8” and 2-3/4” adjustable backset |
| Throw | 1” throw deadbolt with anti-saw pins, |
| Strike | 1-1/8” x 2-3/4″ strike |
| Finish | 626 – Satin Chrome |
| Certification |
ANSI/BHMA Meets or exceeds A156.36 Grade 2 requirements |
| Warranty | 1-year limited for electronic
5-year limited for finish 10-year limited for mechanical |
Installation Guide
Return Policy:
1. We only accept returns of sealed products.
2. To return a defective item, please contact TownSteel directly at 877-858-088, [email protected] or click here to visit their support page. Once they give you a support ticket contact Locksmith Keyless for the return.
