TownSteel – e-Elite – 6000 Series Motorized Cylindrical Lock Maxx Access – Schlage C Keyway – Rigid Lockbodies – Classroom (84) – Left Handed
TownSteel – e-Elite – 6000 Series Motorized Cylindrical Lock Maxx Access – Schlage C Keyway – Rigid Lockbodies – Classroom (84) – Left Handed

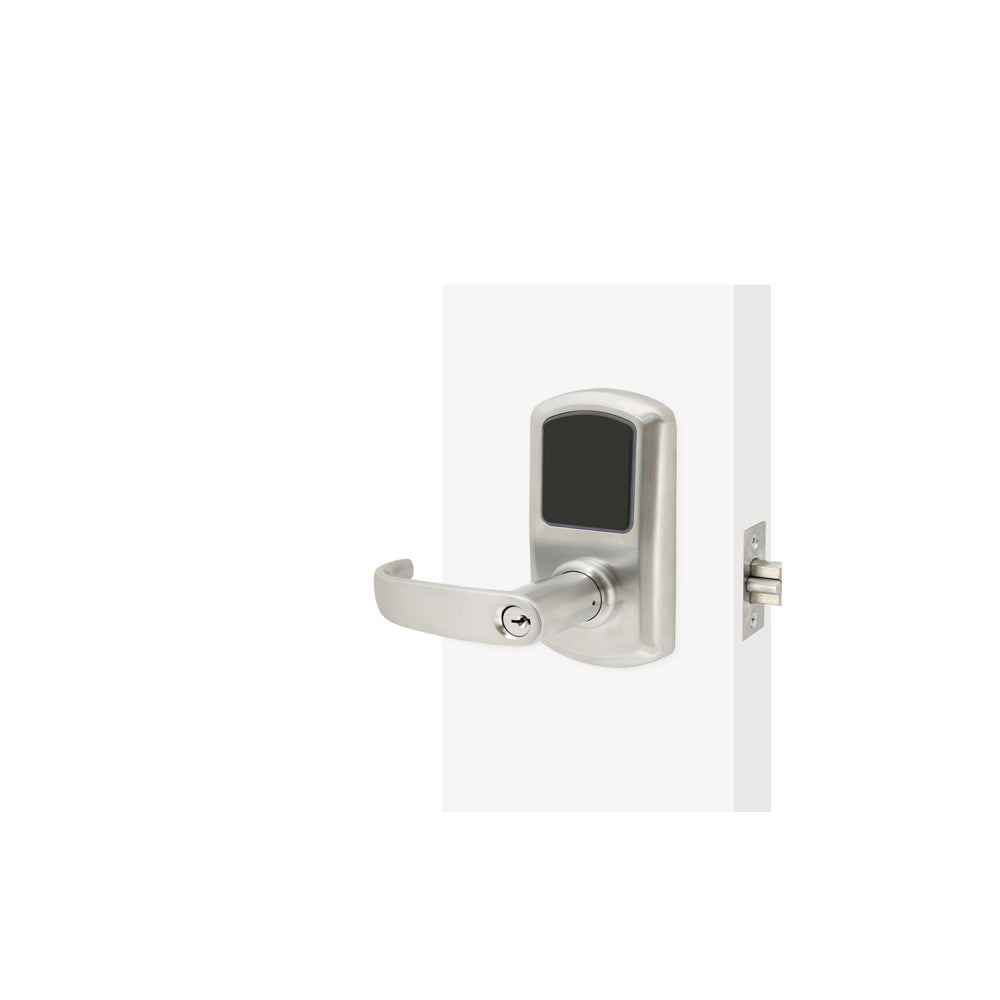

The e-Elite 6000 is an ANSI Grade 1 heavy-duty cylindrical lock that is ideal multi-family, apartments, student housing, senior living, large offices, and hospitality. This product is an electronic access control lock and with a 2000 event audit trail, door position sensor, privacy sensor, and built-in REX sensor. The 6000 series is meant to pair with our local database access system, MAXX Access. The e-Elite 6000 offers a sleek black reader design. This product is equipped with a cylinder so that a mechanical key override is available as an extra backup.
Feature:
- Optional Cylinder/ Key Override
- Convenient lost or stolen key cancellation and replacement
- Supports multi-room access with one key
- Door position, privacy, and built-in REX sensor
- Time-based access control system with electable key-card expiration
- Multiple levels of encryption and unique to each property
- Audit Trail memory and detailed system-use reports
- Clutched design available for highly abusive environment
Specification:
| Series | e-Elite |
| BHMA/ANSI Grade | Grade 1 Certified, ANSI/BHMA A156.2 |
| Lockbodies | Rigid |
| Handings | RHR LH RH LHR |
| Backsets | Standard, 2-3/4″ Optional, 2-3/8″ Optional, 5″ |
| Electronic Specifications | RX Switch |
| Faceplate | 1-1/8″ x 2-1/4″, square corner |
| Function | Classroom (84) |
| Door Thickness | 1-3/4″ |
| Strike | ASA strike standard, T-Strike optional |
| Latch Bolt | ½” throw, stainless steel |
| RX Switch | Standard |
| Door Prep | Standard 161 with thru-bolts |
| Lever Parameters | Cast zinc/stainless steel, plated to match finish symbols |
| Trim | Wrought steel/zinc alloy, plated to match finish symbols |
| Levers | Quest Sentinel Gala Wolfsburg Wolfsburg R |
| Cylinder Specification | 6-pin with Schlage® “C” Keyway |
| Finish | 622 – Flat Black 626 – Satin Chrome 619 – Satin Nickel |
Additional Charge Will Apply For The Available Cylinders:
- 6-pin with Kwikset® “KW” Keyway
- High security 6-pin with Townsteel® “L” Keyway
- High security 7-pin IC core with Townsteel ® “L” Keyway
- 7-pin IC core with Best® “A” Keyway
- 6-pin IC core with Best® “A” Keyway
- Small format IC, SFIC, Less cylinder core option
- Schlage® Large format IC, SLFIC, Less cylinder core option
- Corbin® Large format IC, CLFIC, Less cylinder core option
Download:
- Installation Guide
