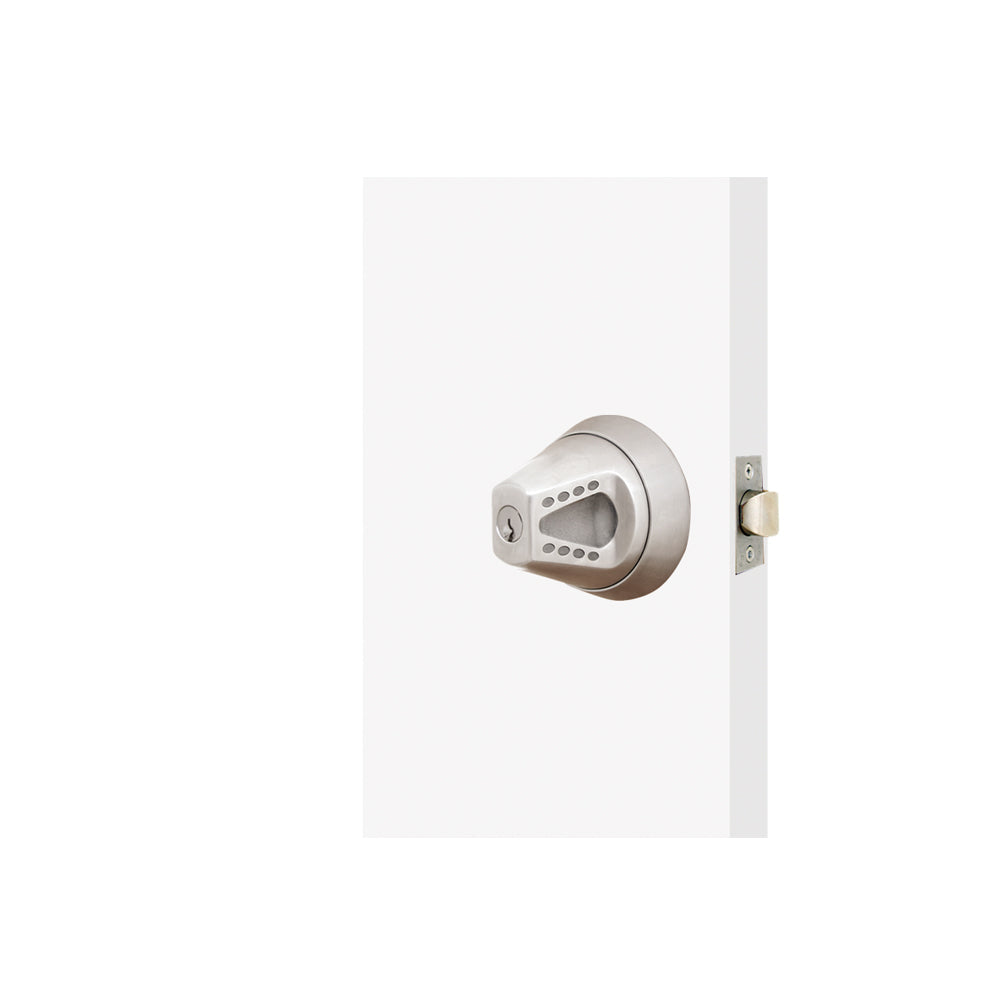

TownSteel – CRX-K – Heavy Duty Anti-Ligature Knob ANSI Grade 1 Cylindrical Lockset – Schlage C Keyway – Asylum (87) Double Cylinder Keyed Knobs – Grade 1 – Satin Stainless Steel-630
TownSteel – CRX-K – Heavy Duty Anti-Ligature Knob ANSI Grade 1 Cylindrical Lockset – Schlage C Keyway – Asylum (87) Double Cylinder Keyed Knobs – Grade 1 – Satin Stainless Steel-630
The CRX-K is an ANSI Grade 1 cylindrical lock with a ligature-resistant knob. CRX-K is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel knob and tamper-resistant mounting screws. The CRX-K can be mounted on both a wood and metal door.
Feature:
- Ligature-resistant stainless steel knob
- Tamper-resistant mounting screws
- Mount onto wood or metal door
Specification:
| Series | CRX |
| BHMA/ANSI Grade | Grade 1 Certified, ANSI/BHMA A156.2 |
| Lockbodies | Rigid |
| Handings | Non-handed |
| Backsets | 2-3/4″ 5″ |
| Faceplate | 1-1/8″ x 2-1/4″, square corner |
| Door Thickness | 1-3/4″ – 2″ |
| Strike | ASA strike T-Strike |
| Latch Bolt | ½” throw, stainless steel |
| Door Prep | Standard 161 |
| Rose | 4″ diameter, stainless steel |
| Mounting | Though-bolt, tamper resistant mounting screws, for wood and metal door |
| Knob | Stainless steel |
| Cylinder Specifications | Schlage C Keyway |
| Finishes | Satin Stainless Steel – 630 |
| Function | Storeroom (86) |
| Compliance | Ligature Resistant UL 10C Compliant |
| Certifications | ANSI/BHMA A156.2 Grade 1: Meets Industry Standard. UL Listed. Meets BAA requirements. |
Additional Charge Will Apply For The Available Cylinders:
- High security 6 pin cylinder with TownSteel “L” keyway
Download:
- Installation Guide
