SECO-LARM SK-1322-SPQ Weatherproof Keypad and Proximity Reader
SECO-LARM SK-1322-SPQ Weatherproof Keypad and Proximity Reader

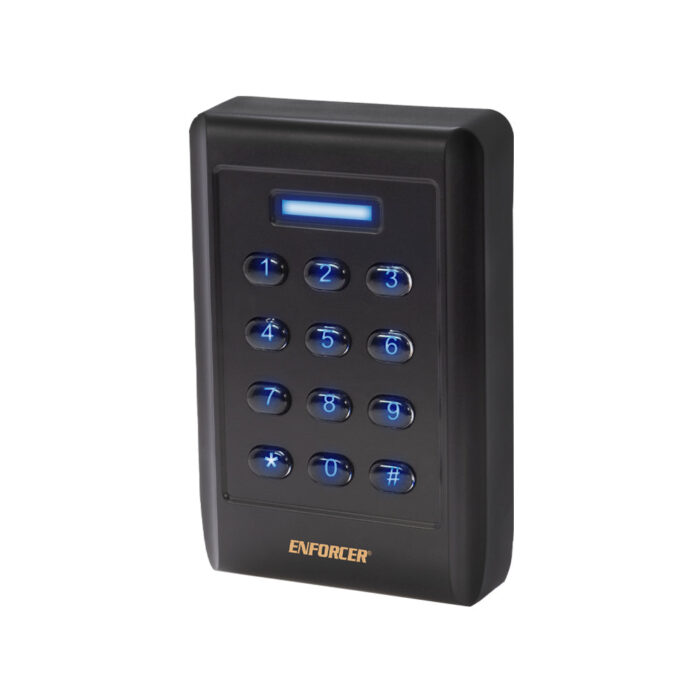

The ENFORCER SK-1322-SPQ Weatherproof Keypad and Proximity Reader is a dual-output access control keypad that supports up to 1,010 users in a durable ABS plastic housing and can be mounted in a standard single-gang back box. It includes a tamper alarm and a backlit keypad for ease of use at night or in dark areas.
Features:
- 12~24 VAC/VDC operation
- 1,010 User codes
- Plastic housing for corrosion resistance
- 2 Form C relays, each rated 1A@30VDC
- Each relay output time is programmable from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs for exiting the premises without keying in the code
- Backlit keys for easy nighttime use
- Can be mounted to a single-gang back box
- Door sensor input for anti-tailgating operation
- All features are programmed directly from the keypad – no need for an external programmer
- EEPROM memory protects programmed information in case of power loss
- Optical tamper for added security
- Circuitry is fully sealed with epoxy for outdoor use
- IP65 weatherproof rating, ABS plastic housing
- Built-in proximity card reader
Specifications:
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw | Standby: 64mA@12VDC 1 Relay active: 92mA@12VDC 2 Relays active: 120mA@12VDC |
| Relay Outputs | Output #1: 1A@30VDC, Form C, NO/NC/COM Output #2: 1A@30VDC, Form C, NO/NC/COM |
| Egress input | Input #1: N.O. Ground Input #2: N.O. Ground |
| Door sensor input | N.C. Ground |
| Tamper sensor | Optical |
| Keypad LED life | 60,000 hours (over 6.8 years) |
| Proximity reader | Frequency: 125kHz Distance: 2″ (5cm) |
| Operating temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 2-15/16″x4-1/2″x7/8″ (75x115x22 mm) |
| Weight | 9-oz (240g) |
Download:
- Product Information Sheet
- Manual
