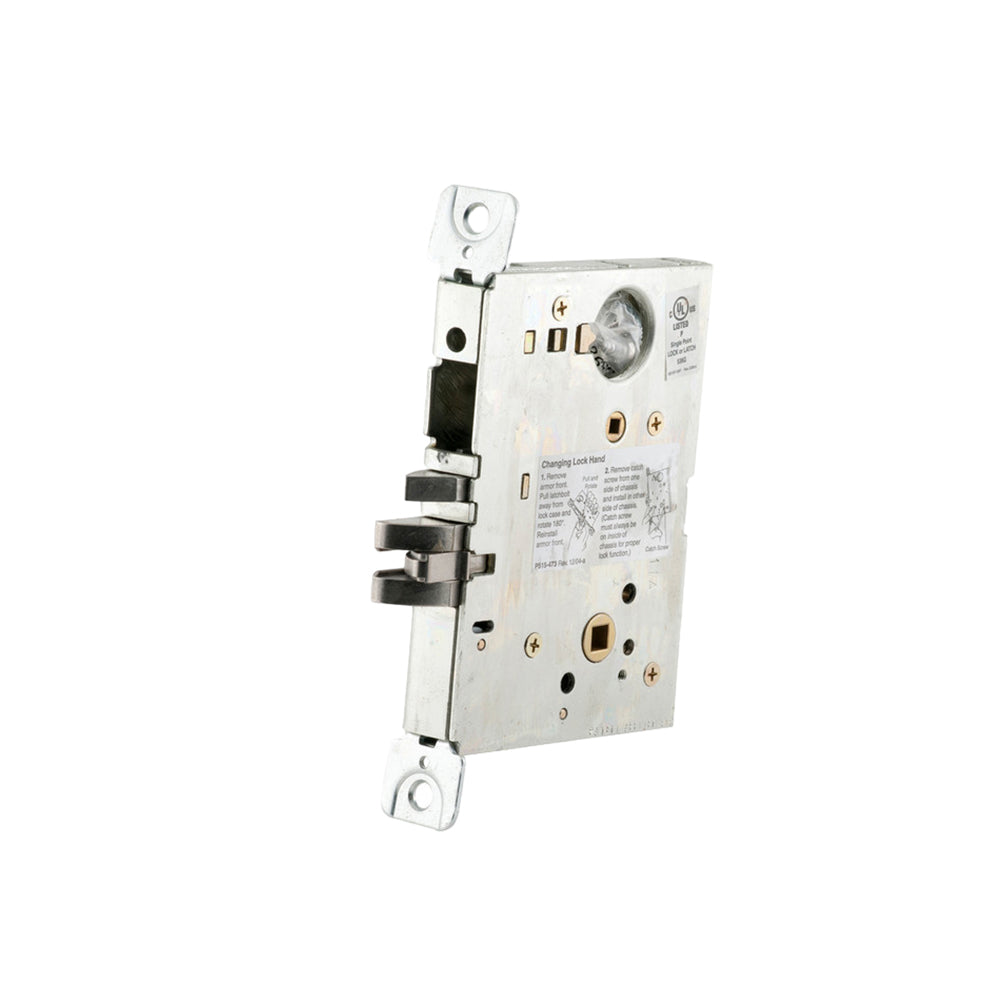

Schlage – L9080LB Storeroom Mortise Lock Body – L Series – Grade 1
Schlage L9080LB Storeroom Mortise Lock Body – L Series – Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.
Product Specifications:
| Manufacturer | Schlage |
| SKU | L9080LB RH 134 |
| UID | SCH100L9080LBRH134 |
| Grade | Grade 1 |
| Origin | Mexico |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9080-Storeroom Lock |
| ANSI Function | F07 – Storeroom/Exit |
| Handing | RH |
| Door Thickness | 1-3/4″ |
| Lock Face Size | 8″ x 1-1/4″ |
| Bolt Projection | 3/4″ |
| Std. Strike Number | 10-072 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8″ |
| Std. Strike Width | 1-1/4″ |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
Installation Instructions:
- Installation Instructions
