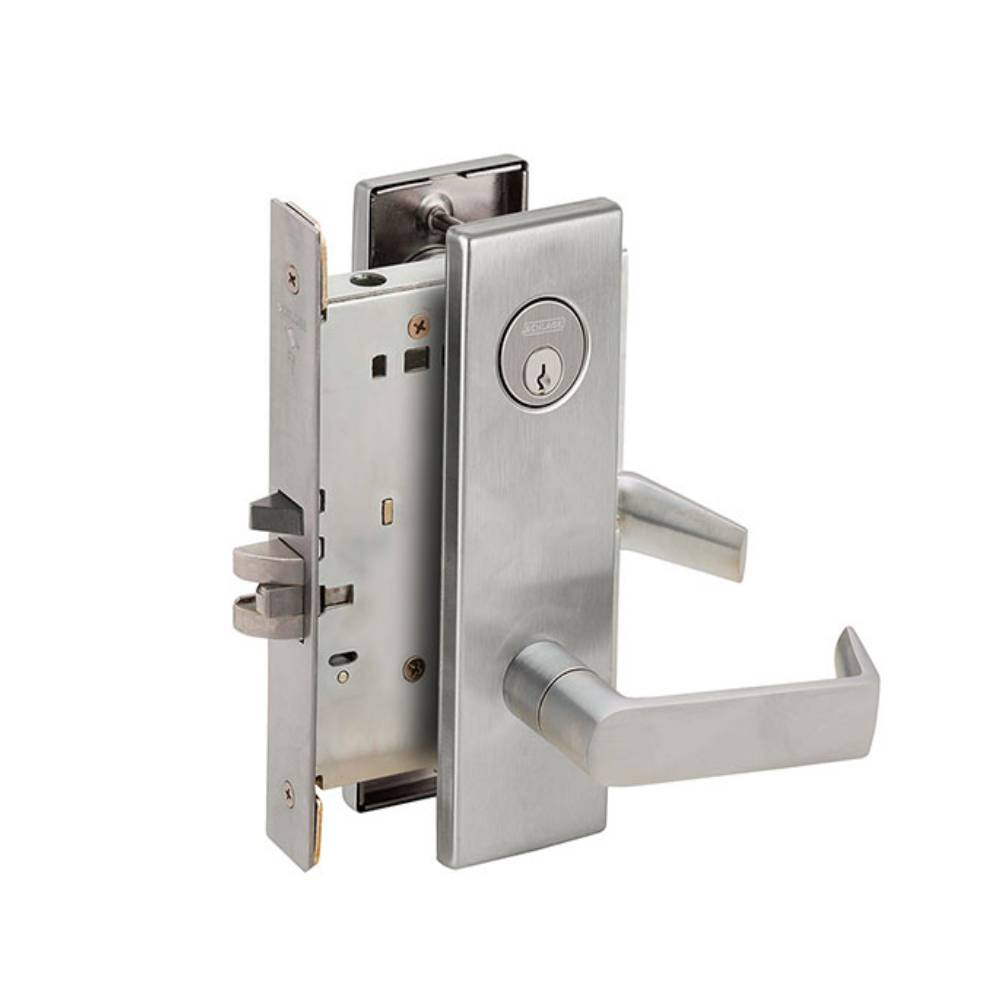

Schlage – L9060P – Apartment Entrance Mortise Lock with 06 Lever and 1-3/16 ANSI Strike – C Keyway – N Escutcheon – Grade 1 – 626 (Satin Chrome Finish)
Schlage – L9060P – Apartment Entrance Mortise Lock with 06 Lever and 1-3/16″ ANSI Strike – C Keyway – N Escutcheon – Grade 1 – 626 (Satin Chrome Finish)
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | L9060P 06N 626 |
| UID | SCH100L9060P06N626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.13-2017 Series 1000 |
| BAA Qualified | Yes |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9060-Apartment Entrance |
| ANSI Function | F09 – Entry/Restroom |
| Lever/Knob Design | 06 Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | N Escutcheon |
| Rose/Escutcheon Dimensions | 8″ x 2-9/16″ x 7/16″ |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8″ |
| Cam Type | Schlage L |
| Handing | Field Reversible |
| Door Thickness | 1-3/4″ |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4″ |
| Lock Face Size | 8″ x 1-1/4″ |
| Bolt Projection | 3/4″ Latch |
| Std. Strike Number | 10-072 1316 626 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8″ |
| Std. Strike Width | 1-3/16″ |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
