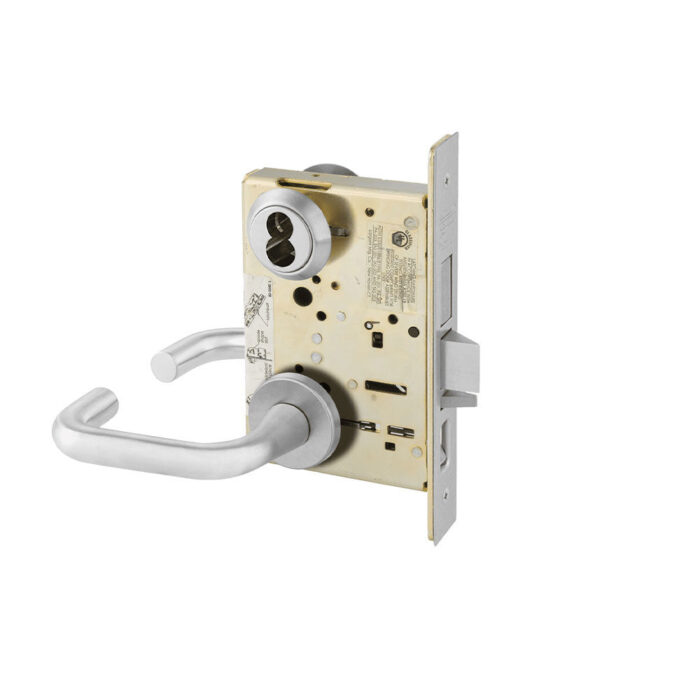

Sargent – 8205 – Office or Entry Mortise Lock – LFIC Prep Less Core – Rose Trim Function – Grade 1
Sargent – 8205 – Office or Entry Mortise Lock – LFIC Prep Less Core – Rose Trim Function – Grade 1
The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-cUL listed for 3 hour fire fdoors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- 10-year warranty
- Patented design and construction
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| BAA Qualified | Yes |
| Base Material | Brass or Bronze |
| Application | Complete Lock |
| Fire Rating | 2 Hours {B} |
Technical Specifications:
| Handing | Field Reversible |
| Field Reversible | 1-3/4 Inch |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8 Inch |
| Std. Strike Width | 1-1/4 Inch |
| Screws | Combination |
| Function | 05-Office or Entry |
| Lever Design | J, L |
| Lock Face Size | 8 x 1-1/4 Inch |
| Bolt Projection | 3/4 Inch Latch |
| ANSI Function | F04 – Entry/Office |
| Std. Strike Number | 82-0110 |
| Rose Design | LN – Rose |
| Cylinder Type | Sargent LFIC Less Core |
Benefits:
- Strength and Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles
- Security: Several security features provide additional resistance against vandalism and unauthorized entry.
- Flexibility and Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools/universities)
- Ease of Install and Maintenance: Multifunctional lock body makes switching functions on-site easy and reduces inventory requirements.
Download:
- Installation Instruction
