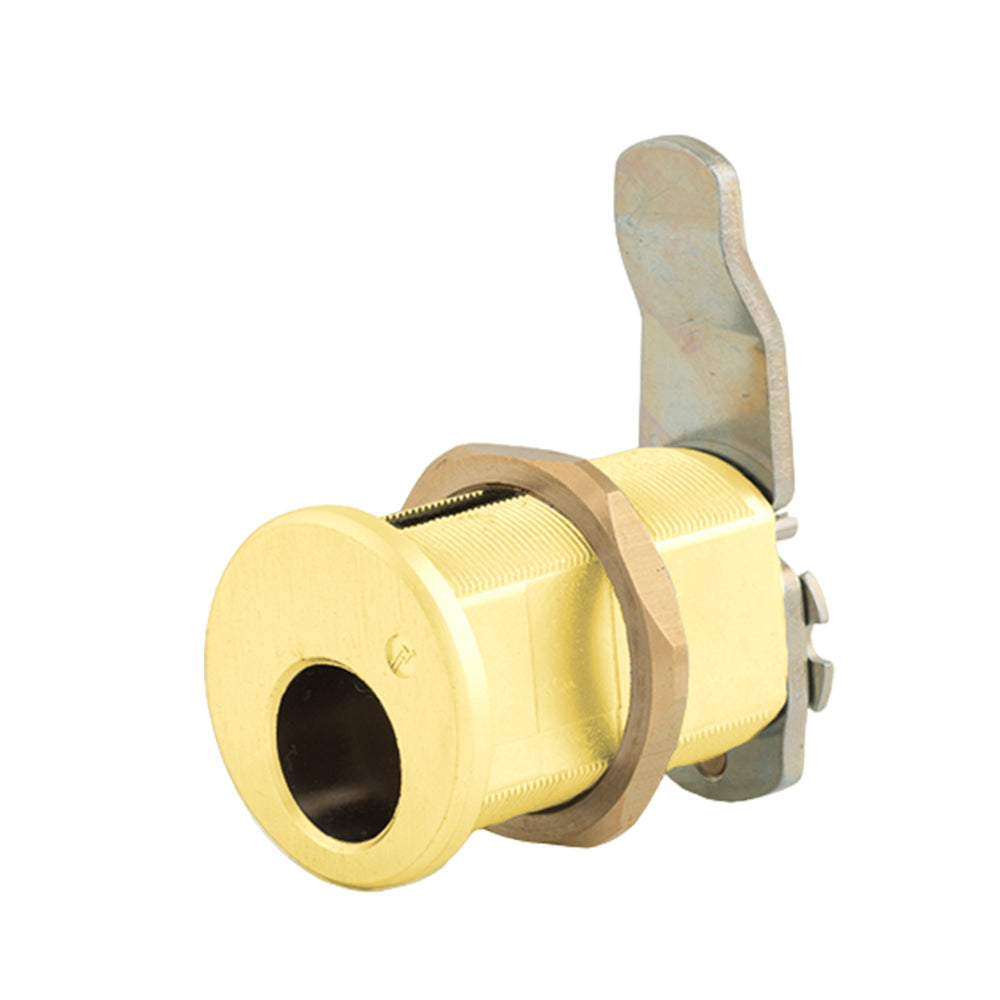

OLYMPUS LOCK – 820LC – Schlage C Keyway Cam Lock – S Series – 1-1/8 Cylinder length – US3 (Polished Brass-605)
OLYMPUS LOCK – 820LC – Schlage C Keyway Cam Lock – S Series – 1-1/8″ Cylinder length – US3 (Polished Brass-605)
Feature:
- Cam lock
- Easily rekeyable via rear set screws
- Will accept other manufacturer’s Schlage compatible deadbolt cylinders
- ANSI/BHMA: E07261
- Cylinder diameter: 1-1/8
- Across flats: 7/8″
- Mounting cutout: 1-5/32″
- Max. material thickness: 1-3/8″
- Min. material thickness: 0.08″
- US Patent No. 7,716,958 B2
- Includes all parts for key-retaining or non-key-retaining function
Specification:
- Rekeyable: Easily rekeyable via set screw on back of lock body
- U.S. Patent No: 7,716,958 B2
- Cylinder diameter: 1-1/8″
- Across flats: 7/8″
- Max. material thickness: 1-3/8″
- Min. material thickness: 0.08″
- Body: Zinc die cast
- Functions: Includes parts for key-retaining or nonkey-retaining
Cylinder Information:
- Cylinder: Not included
- Accepts: Schlage compatible key-in-knob cylinders including ILCO cylinder #1599. This lock does not accept Medeco cylinders.
- Includes: All parts necessary to work with other manufacturers’ Schlage compatible cylinders.
- Compatible electronic cylinders: ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders.
Included Accessories:
- 720-PL3 anti-rotation plate
- 720-3-1 short inverted cam
- 720-3-2 long vertical cam
- 720-CDLM lost motion cam shifter
- 720-CDDM key retaining door cam shifter
- 720-KR key retaining drawer cam shifter
Optional Accessories:
- Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
- Trim collars: TR200 Series
- Cylinder: 78-201 Series
- Switch accessory pack: SW-1
- CL-MP-118: Double-D metal punch
Download:
- Data Sheet
- Installation Instruction
