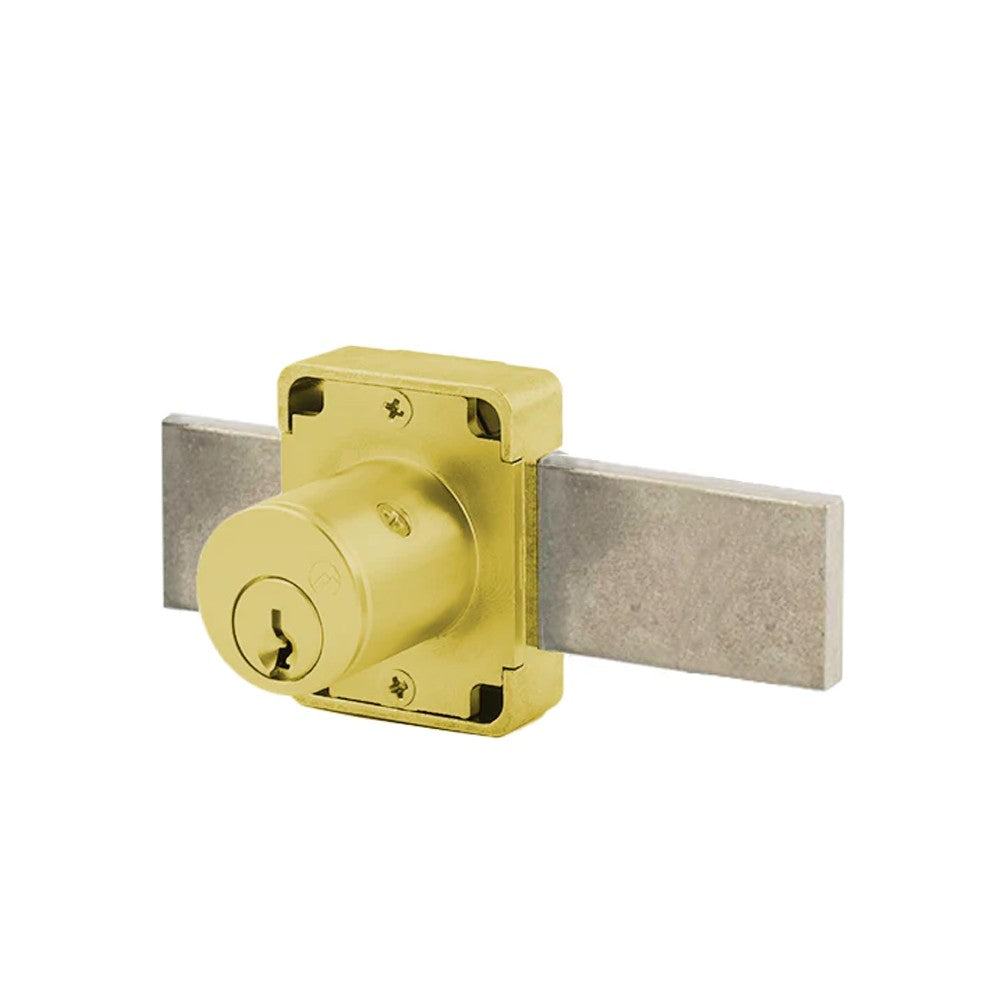

OLYMPUS LOCK – 100DR – Cabinet Deadbolt Door Lock – N Series – Optional Cylinder Length – Optional Keying – US4 (Satin Brass-606)
OLYMPUS LOCK – 100DR – Cabinet Deadbolt Door Lock – N Series – Optional Cylinder Length – Optional Keying – US4 (Satin Brass-606)
Feature:
- N Series: National Keyway
- 100DR deadbolt door lock
- All non-ferrous (non-magnetic) materials and parts
- Easily rekeyable via set screw cylinder release mechanism
- For standard locks
- For weather resistant locks
- Solid brass pin tumbler cylinder drilled for 5 pins
- (E07041) ANSI/BHMA Grade 1
- Barrel lengths: 15/16″, 1-3/8″ or 1-5/8″ (see below). Specify barrel length when ordering
- Barrel diameter: 7/8″
- Stanard function: locks are non-handed with key removable in the locked and unlocked position.
- US26D finish
- Includes bar strike 56-1
- US Patent Nos: 4,899,563; 4,920,774
- 1-5/8″ barrel length for 3/4″ x 3/4″ drawer construction
Specification:
- Keying: Can be keyed together with other N Series locks
- Rekeyable: Easily rekeyable via set screw cylinder release mechanism
- ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements.
- Equivalent to E07121(100DR) / E07041(200DW).
- Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
- Body: Zinc die cast
- Cylinder: Solid brass, pin tumbler
- Cylinder length: 15/16″, 1-3/8″ or 1-5/8″
- Barrel diameter: 7/8″
- Finish: 26D
Keying Information:
- Keyway: N Series (equivalent to National D4291 4-pin or D4292 5-pin system)
- Keys: Includes 2 keys per lock
- Stock keying: KD/KA – 4 pin standard
- Stock KA#: 101, 103, 107, 915, 51001, 51002, 51003, 51004*note
- Masterkeyed: 5 pin standard
- Grand masterkeyed: Available
- Keyblank 4-pin: KBN-4-NP (equivalent to NA14, 1069L)
- Keyblank 5-pin: KBN-5-NP (equivalent to NA12, 1069LA)
- Keyblank 5-pin copper plated: KBN-5B (use with 100M/200M MRI locks)
Included Acessories:
- 200M: 2 keys, 56-1 bar strike, and lock mounting screws (keys, components and materials are nonferrous/non-magnetic)
- 100DR/100B: 2 keys, 56-1 bar strike, and lock mounting screws
Optional Accessories:
- Spacers: WP20 (3/16″ thick), WP21 (3/32″ thick), WP22 (1/4″ thick), WP23 (1/2″ thick)
- Strikes: 07S, 12-1, 12-2, 12-3, 12-5, 12-4, 56-1
- Trim ring: TR1256
- Through-bolt hardware: ETS2 trim plate, ETS2-PL trim pull and ETST2 template
- Long bolt (bolt only): 15-1-35 for use with 200DW/200B/200M locks
MPN: 100-US4138-101
Download:
- Data Sheet
- Installation Instruction
