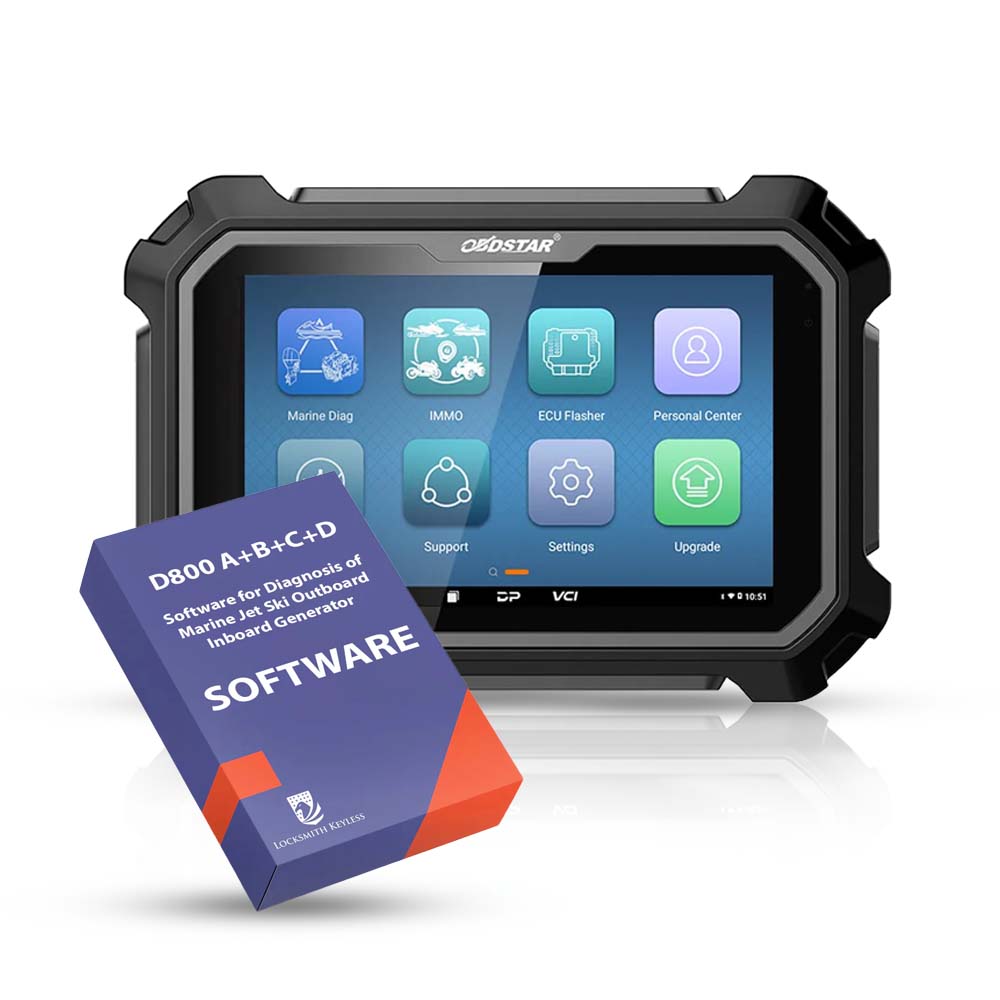

OBDSTAR D800 Device for Marine (Jet Ski/ Outboard/ Inboard/ Generator) Intelligent Diagnosis with Free A B C D Configuration Software
OBDSTAR D800 Device for Marine (Jet Ski/ Outboard/ Inboard/ Generator) Intelligent Diagnosis with Free A B C D Configuration Software
Includes:
- D800 Device
- D800 A B C D Configuration Software
OBDSTAR D800 New Generation Device For Marine (Jet Ski/ Outboard/ Inboard/ Generator) Intelligent Diagnosis
D800 is OBDSTAR’s new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.
Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.
D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!
Functions:
- New android 5.1.1 operation system
- Simple and intuitive menu guidance allows you to quickly master the equipment operation
- Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc
- Record and play back real-time flow, quickly and accurately locate sensor and component faults
- Wi-Fi connection to the internet, one-click software upgrade
- One-click remote function, OBDSTAR technical staff remote assistance
Advanced Functions:
- The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
- The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
- Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
- Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality, and other functions.
Supported Brands:
EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA.
Optional Brands:
CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR.
Specification:
| Operation system | Android 5.1.1 |
| CPU | Exynos4418 qual core ARM cortex A9 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 32GB |
| LCD | 8.0 inch |
| LCD resolution | 1280*800 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Camera | 5 mega rear view camera |
| Working temperature | -10℃～55℃ (14℉～131℉) |
| Storage temperature | -20℃～70℃ (-4℉～158℉) |
| Weight | 1kg (main unit) |
| Dimension | 254mm*174mm*35mm |
OBDSTAR D800 A B C D Configuration Software for Intelligent Diagnosis of Marine Jet Ski Outboard Inboard Generator
D800 is OBDSTAR’s new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.
OBDSTAR D800 A+B+C+D Full Configuration support diagnoses the following models: CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCURY/MERCURY RACING, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, VM MOTORI,VOLVO PENTA, YAMAHA, YANMAR
Downloads:
- D800 Coverage 20230315
- BRP Marine Diag Upgrade
- HONDA Marine Diag Upgrade
- VOLVO Marine Diag Upgrade
- CUMMINS MERCRUISER DIESEL Marine Diag Upgrade
- SUZUKI Marine Diag Upgrade
