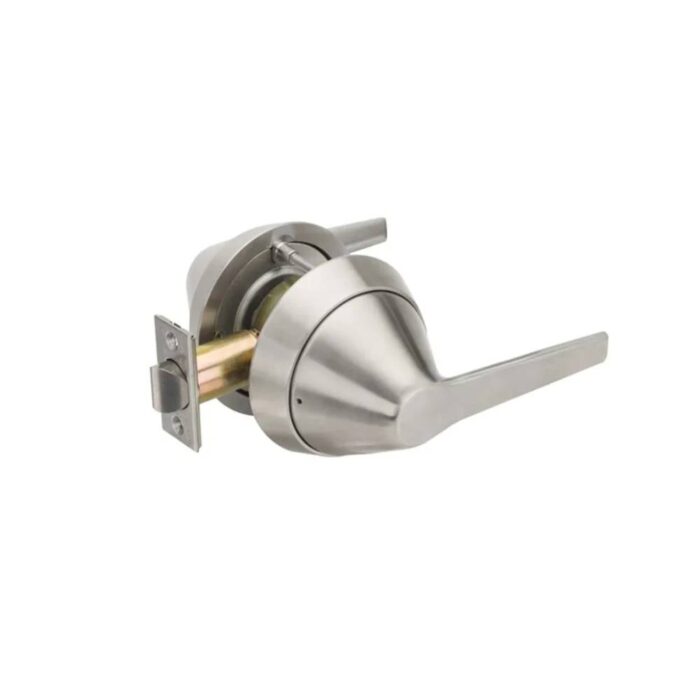

Marks USA – 195SSL – Privacy Cylindrical Lock – Anti-Ligature Knob – Non-keyed Cylinder – 3-13/16 Diameter Rose – Non-Handed – Grade 1 – Satin Stainless Steel
Marks USA – 195SSL – Privacy Cylindrical Lock – Anti-Ligature Knob – Non-keyed Cylinder – 3-13/16″ Diameter Rose – Non-Handed – Grade 1 – Satin Stainless Steel
Product Specification:
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 195SSL/32D |
| UID | MAR100195SSL32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
Technical Specification:
| Function | L-Privacy |
| ANSI Function | F76 |
| Lever/Knob Design | 195SS-Anti-Ligature Lever |
| Lever/Knob Design Family | Anti-Ligature Lever |
| Rose/Escutcheon Design | 3-13/16″ Diameter |
| Cylinder Type | Non-keyed |
| Handing | Non-Handed |
| Door Thickness | 1-5/8″ to 1-7/8″ |
| Std. Latch Number | 1834L |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4″ |
| Latch Bore Diameter | 1″ |
| Lock Face Size | 2-1/4″ x 1-1/8″ |
| Bolt Projection | 9/16″ |
| Bore Hole Diameter | 2-1/8″ |
| Std. Strike Number | 1135 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8″ |
| Std. Strike Width | 1-1/4″ |
| Screws | Combination |
| Product Type | Cylindrical Lock |
