LAB – Interchangeable Core Annex / LICCB
LAB – Interchangeable Core Annex / LICCB

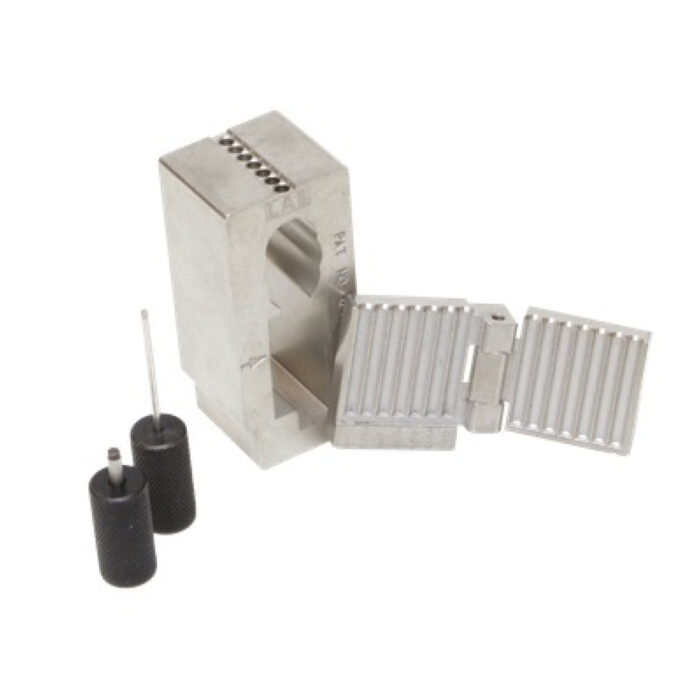

The LAB Interchangeable Core Annex® offers the simplest method for the loading and unloading of SFIC Pins, Springs, and caps, using only one instrument for both functions.
A second time-saving feature is a Slide out Code Book below the area where the core is slid in place. This allows the user to unload the core pins, springs and caps into a confined area without spilling the parts in or around the work area.
The Slide out Code Book is also used to decode the Core to determine the bitting of the control key when it is not available and also determine the top master key bitting.
Constructed of Stainless Steel
Caution: Use only plastic or rawhide mallet with this ANNEX. Use of metal hammers WILL DAMAGE IT!
Includes
– ANNEX with Slideout Code Book
– Capping Instrument LCI001
– Pin Stack Evictor LPE001
Dimensions: 1-1/8″ x 1-1/4″ x 3″
Weight: 0.8 lb.
