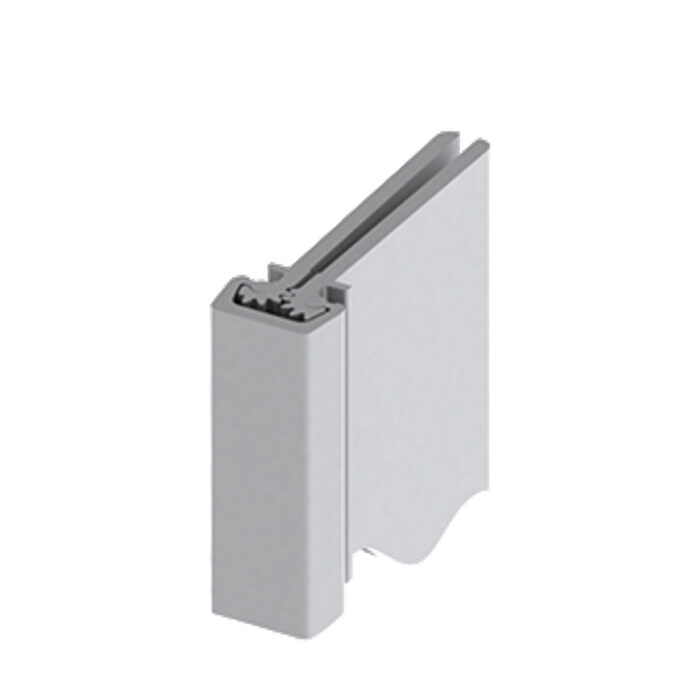

HAGER – 780-226HD – Heavy Duty Concealed Leaf Continuous Geared Hinge
HAGER – 780-226HD – Heavy Duty Concealed Leaf Continuous Geared Hinge
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards;
Product Specifications:
Applications:
- Frame leaf alignment rib for proper hinge and door location
- Intended for doors 2″ or thicker
Clearance:
- 5/16″ (8 mm) hinge side,
- Plus standard lockside clearance.
- Refer to Door and Frame Dimensioning in the General Information section for further details
Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Electric Modifications:
- Power Transfer Preparation (EPT 2) or (EPT 10);
- Exposed Electric Contacts (E)
- Exposed Electric Switches (E1S)
- Electric Through-Wire (ETW)
- Electric Monitoring (EMN)
- Electric Through-Wire and Monitoring (ETM)
Fasteners:
- Standard: Dril-Kwik® – #12-24 X 11/16″ Flat Head Screws
- Optional: 1/2 Dril-Kwik® Screws, 1/2 wood Screws
- Additional Options Available upon request.
Features:
- Heavy duty for high frequency doors or heavy, medium frequency doors. All for doors 2†(51 mm) thick or greater.
- Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify “LLâ€)
- Frame and door leaf alignment ribs for proper hinge and door location.
Finishes: CLR, DBZ, BLK;
Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Length: 79″, 83″, 85″, 95″, 119″
Material: Aluminum 6063-T6
Notes:
- EPD: Roton Continuous Hinges Environmental Product Declaration
Options:
- Hospital Tip
- TIPIT® (see Roton accessories)
Product Description:
- Concealed Leaf
- Heavy Duty
- For Doors 2″ or Thicker
Download:
- Installation Instructions
- Roton Electrical Modifications
