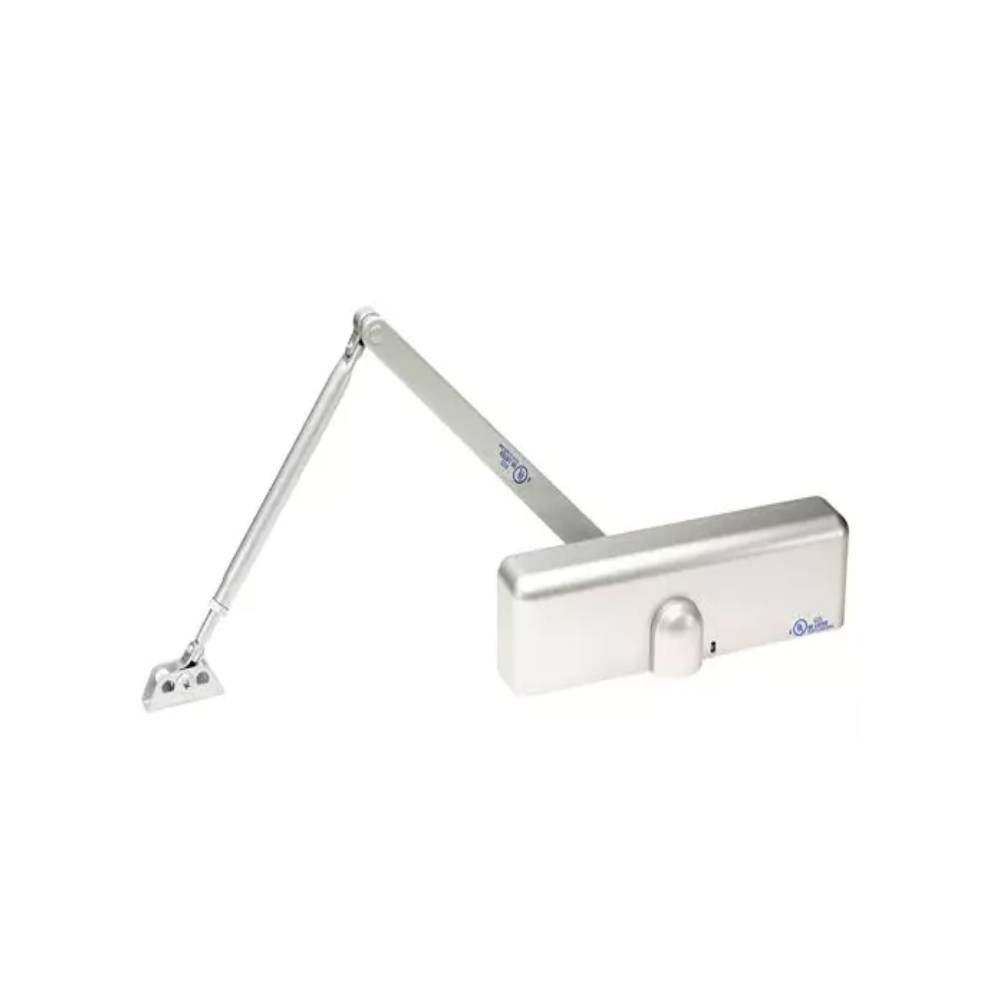

Global Door Controls – DC-90BFBC – Barrier Free Spring Adjustment Door Closers – Size 1-4 – Grade 1
Global Door Controls – DC-90BFBC – Barrier Free Spring Adjustment Door Closers – Size 1-4 – Grade 1
Closer -Closers shall be TA model number DC90 and DC90BF, full rack and pinion lype with cast aluminum alloy body. All closers shall be provided with non-critical valves adjustment to independently regulale the sweep, latch and back check. Closers shall be non-handed with projection from the face of the door of 2-1/16′ without cover and 3″ with cover. Closer shall have full spring adjustment from size 1 to size 4 for barrier free ( BF). The closer shall be pre-adjusted at the factory to size 2 for the DC90BF. The closer shall be adjusted for each door condition and mounted to allow the maximum degree of swing.
Features:
- ANSI A 156.4 Grade 1 UL 1 QC and UBC 7.2 for positive pressure
- ANSI A 117.1 and ADA for barrier-free accessibility
- Standard spring adjustment from size 1 to 4
- Non handed
- Standard with adjustable sweep, latch and back check Slimline Plastic Cover
- SNB -Sex Nuts and Bolts
- Finish: AL- Aluminum, DU- Duronotic
Options:
- BF -Barrier free spring adjustment from size 1 to 4.
- SPC -Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
