GAAB T512-01 Two-points Flash Bolt for Inactive Leaf Of Paired Doors – Black Mate
GAAB T512-01 Two-points Flash Bolt for Inactive Leaf Of Paired Doors – Black Mate
Description:
- Two-points flushbolt is used instead of flip-lever flushbolts in the inactive leaf of paired doors, must be installed in conjunction with a deadlock.

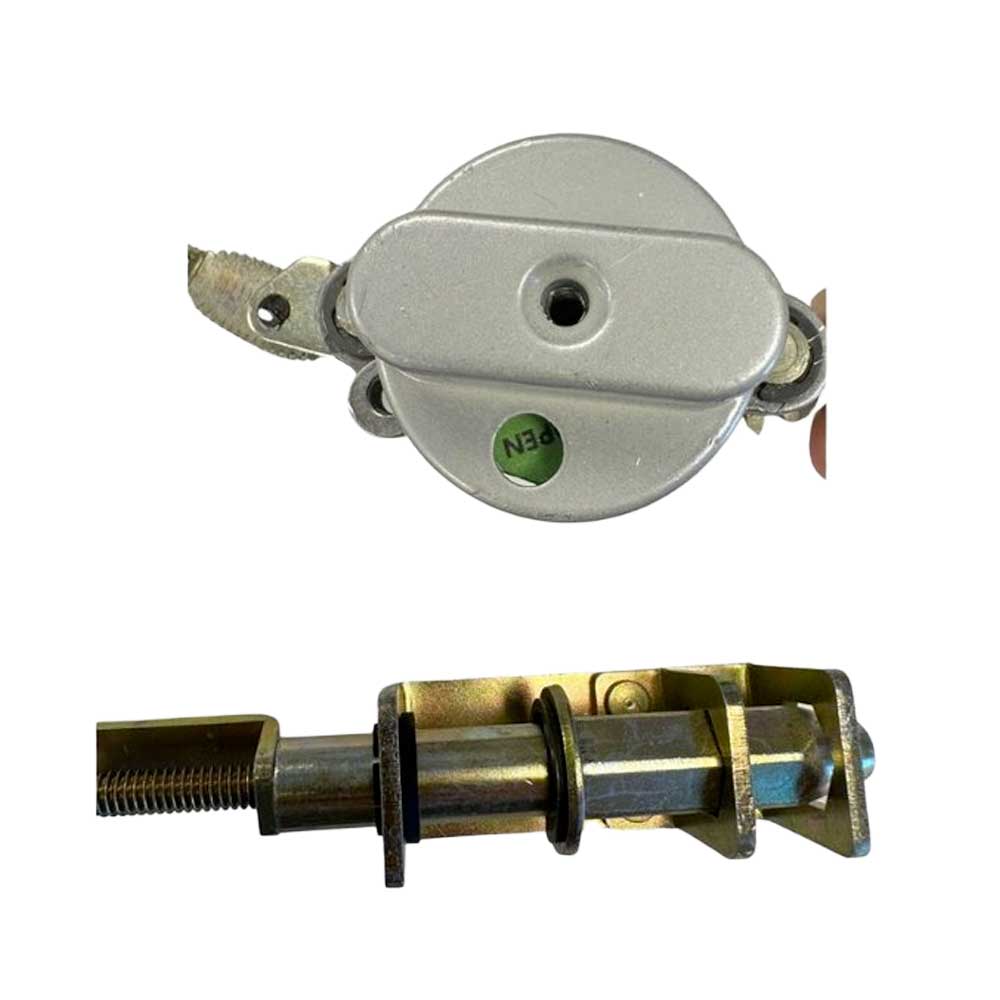

- Simply operated by turning the lever 180° clockwise to lock the door and turning 180° counterclockwise to unlocked the door. Includes a green(unlocked) and red(locked) indicator.
- Steel hexagonal bolts 9/16”(14mm) and 7/8” (22mm) max projection easily adjustable. Reinforced metal guides. Top and bottom strikes made of deep drawn sheet steel.
- Turn lever of 1 9/16”(40mm) diameter and 5/8”(16mm) projection. Available in black mate, grey, dark bronze and white finish.
- Include bottom strike cap in nylon (joint use with bottom strike), for to avoid water leaks in the profiles.
- Suitable for doors heights up to 96”(2440mm) with device mounted at 40”(1016mm) centerline above bottom door. For higher doors require extension of threaded rod for up to 120”(3048mm). Available separately (T352E00).
- Suitable from 1 3/4”(44mm) thickness doors(included). Suitable for doors with up 3/32”(2,5mm) to 1/8”(3,2mm) stile wall thickness and minimum 2 ½”(63mm) of style width is required. Backset installation 1 1/2”.
