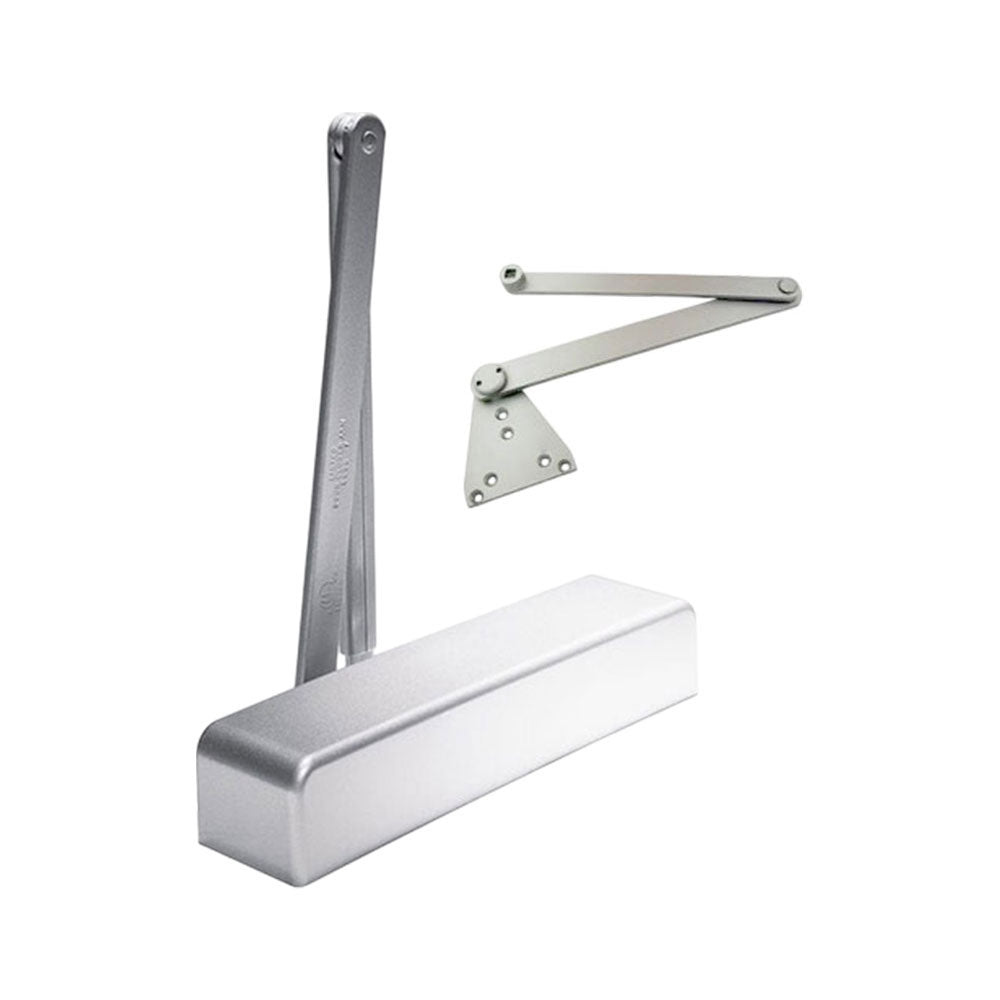

Dormakaba – 8916 – Surface Closer with Super Parallel Arm and Full Plastic Cover – Grade 1 – Aluminum Painted
Dormakaba – 8916 – Surface Closer with Super Parallel Arm and Full Plastic Cover – Grade 1 – Aluminum Painted
The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.
Features:
- Adjustable backcheck
- Long term performance
- Adjustable spring sizes
- Meets barrier-free requirements
- UL and CL listed.
- Meets UL10C for positive pressure.
- ANSI/BHMA A156.4 Grade 1 certified.
- CSFM Approved.
Product Specifications:
| Grade | Grade 1 |
| UL Listing | UL Listed |
| ANSI | A156.4 |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
Technical Specifications:
| Type | Surface |
| Mounting Group | Hydraulic |
| Mounting Location | Push or Pull Side |
| Back Check | Adjustable |
| Closer Size | 1 to 6 |
| Degree Swing | 180 Deg. |
| Drop Plate | Available |
| Cover | Full Plastic |
| Screw Type | Sex Nuts (1-3/8″) |
| Door Size | 42″ Wide Exterior to 48″ Wide Interior |
| Door Weight | 180 lbs. |
| Arm Type | Super Parallel Arm |
| Accessories | BSHD – Blade Stop Heavy Duty |
Downloads:
- Installation Instructions
