Camden CX-ED1079DL Universal Low Profile Electric Strike with Latch Monitoring – Safe/Fail Secure – 12/24V AC/DC
Camden CX-ED1079DL Universal Low Profile Electric Strike with Latch Monitoring – Safe/Fail Secure – 12/24V AC/DC
CX-ED1079DL (standard depth, for 3/4″ latch projection) ‘Universal’ grade 1 ANSI strikes offer ‘Universal’ performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
Features:
- Centerline latch entry for cylindrical and mortise locksets.
- CX-ED1079, low profile. 1/2″ to 5/8″ latch projection (throw)
- CX-ED1079D, Std. Depth. 5/8″ to 3/4″ latch projection (throw)
- Selectable 12/24V AC/DC
- Selectable fail safe/fail secure operation
- Horizontal adjustability of strike faceplate/body

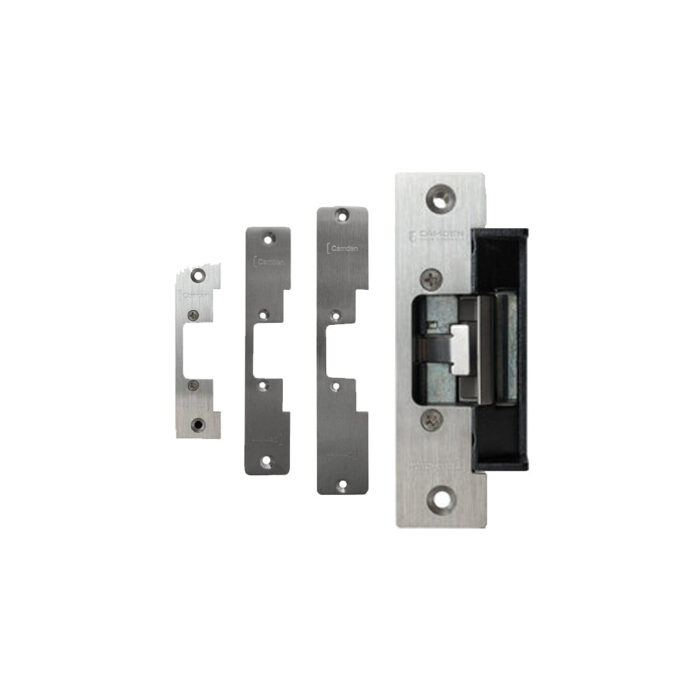

- 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
- Continuous duty operation
- Non-handed
- 5 year warranty
Specifications:
| Voltage: | 12/24V AC/DC |
| Current Draw: | 260 mA @ 12 VDC 150 mA @ 24 VDC |
| Static Strength: | 1,500 Lbs. |
| Dynamic Strength: | 70 Ft-Lbs. |
| Endurance: | 1,000,000 cycles (Factory Tested) 250,000 cycles (UL Verified) |
| Mode: | Selectable fail safe fail secure |
| Operation: | AC – Buzz DC- Silent |
| Duty: | Continuous |
| Latch Monitor: | Yes |
| Dimensions: |
CX-ED1079DL: |
