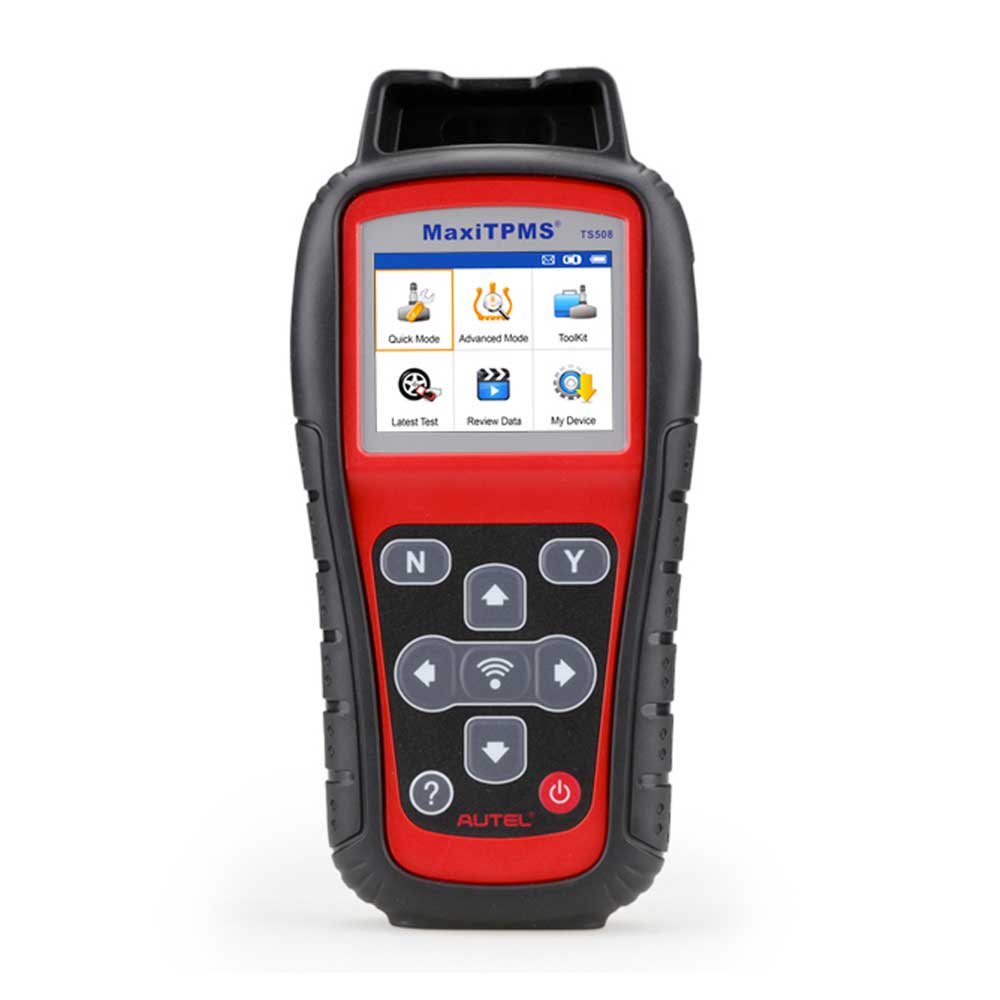

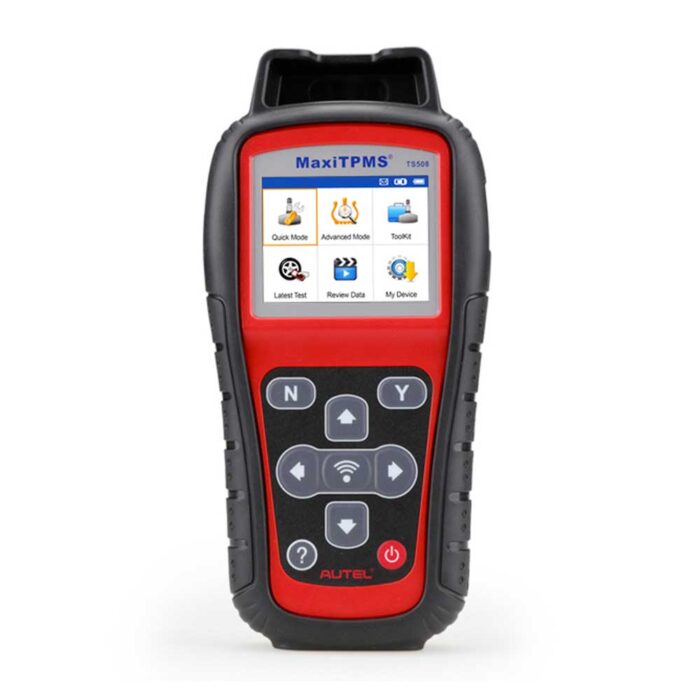

Autel MaxiTPMS TS508 TPMS Diagnostic & Service Tool (Discontinued)
Autel MaxiTPMS TS508 TPMS Diagnostic & Service Tool
The MaxiTPMS® TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.
Two TPMS Service Modes:
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
Quick Mode / Advanced Mode Comparison:
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.
Exclusive TPMS Status Screen:
- Read ECU sensor ID
- Check sensor ID and ECU ID matching condition
- Read DTCs from ECU and erase DTCs
- View DTCs detail description
Four MX-sensor Programming Options:
- Copy By Activation
- Copy By Manual Input
- Auto Create 1-16
- Copy By OBD
Specifications:
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temp. | 0°C to 50°C (32°F to 122°F) |
| Storage Temp. | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”) |
| Weight | 0.39 kg (0.86 lb.) |
| Connectivity | Mini USB 2.0 x 1 |
| Warranty | 1 year |
| Software Update | Free |
Includes:
- MaxiTPMS TS508 – Main unit
- Carrying Case
- OBD II Cable
- USB Cable
- AC Adapter
- User Manual
Downloads
- User Manual
- TPMS Diagnosis Legend
- TS508 V6.21 Function List (US)
- TS508 Introduction
- TS508 Introduction Kit
