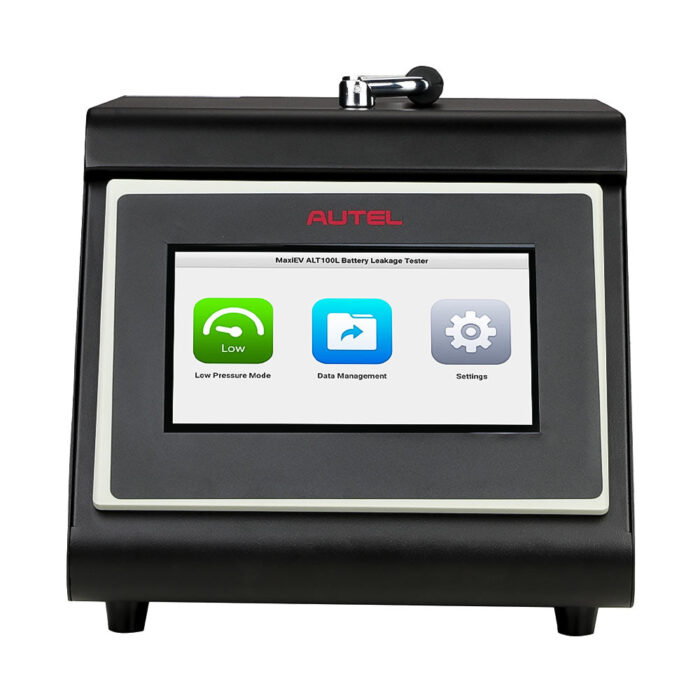

Autel MaxiEV ALT100L EV Battery Leakage and Airtightness Tester with Dual Pressure Display
Autel MaxiEV ALT100L EV Battery Leakage and Airtightness Tester with Dual Pressure Display
The MaxiEV ALT100L is an EV battery leakage and airtightness tester. The unit tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets; Pack ID and volume, target pressure, testing phase time, and alarm settings. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments. Includes a one-year limited warranty.
Features:
- Tests high voltage battery enclosures and high voltage thermodynamics systems such as coolant and A/C for leaks.
- High-sensitive pressure sensing significantly improves test accuracy and stability.
- Dual Pressure Display: Real-time display of current pressure and leakage fluctuations.
- On-screen monitoring of tests progress.
- Customizable Presets: Pack ID and volume, target pressure, testing phase time, and alarm settings.
- Automatically saves test parameters for easy retest adjustments.
- Audible and visual abnormal or failed test results to ensure safety.
- Saves test result screenshots to USB for report generation.
- Software updates via download
- Covered by one-year Limited Warranty
Industry Applications:
-
Battery/Vehicle Transport:
- Safely discharge batteries to DOT transport guidelines
- (Air: 20%, Land/Sea: 40%). For car dealers moving EV and Plug in Hybrids between locations.
-
Passenger & Commercial Vehicles – Mechanical & Collision:
- Direct charging and discharging before, during, and after vehicle repair for safety.
- Discharge the battery before placing the vehicle in the baking booth.
- Restore range and performance by balancing a battery.
-
Salvage Yards and Vehicle Warehouses:
- Prevent thermal runaway events (fires) by discharging batteries.
Specifications:
| Test Power | 20W (Max) |
| Test Pressure Range | 0-30KPa |
| Sensor Resolution | 1 Pa |
| Test Accuracy | ±5pa |
| Communication Port | RS-232 / USB |
| Data Storage | Internal memory / download via USB disk |
| Power Supply | AC220V |
| Air Supply | 0.1-1.0 MPa dry compressed air |
| Air Inlet Port / Test Port | ¢6mm air pipe/¢6mm air pipe |
| Work Temperature / Humidity | 10%-90% @25°C, without condensation |
| Dimensions | 13.39 L x 14.37 x 15.35 H |
