Altronix – SMP312CX – Power Supply Board with 12VDC or AH Battery and Plug-in Xrmr – Single 12VDC Output at 10A
Altronix – SMP312CX – Power Supply Board with 12VDC or AH Battery and Plug-in Xrmr – Single 12VDC Output at 10A
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Features:
- Extremely compact design.
- Includes battery leads.
- Snap Trac compatible (order Altronix model number ST3).
Output:
- 12VDC output.
- 2.5A continuous supply current.

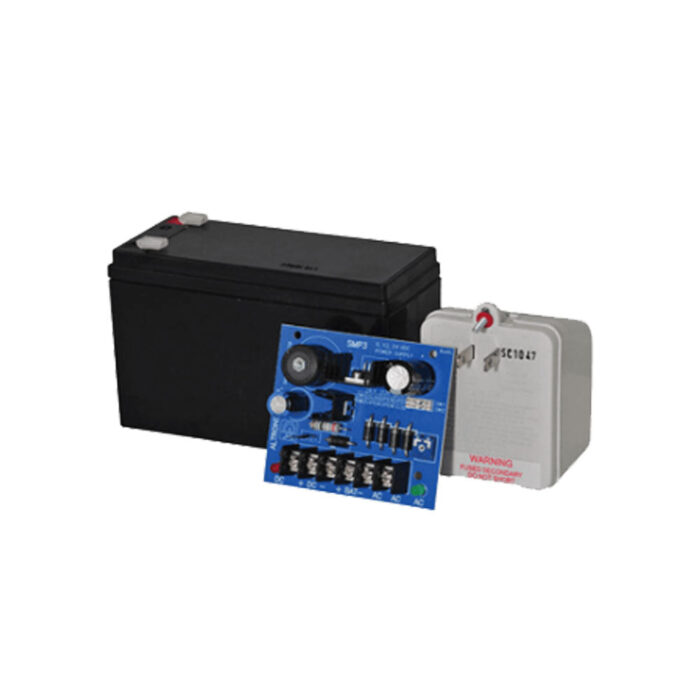

- Kit includes: power supply, 12VDC 7AH rechargeable battery and 16.5VAC 40VA Class 2 Rated plug-in transformer.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Backup:
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Battery short circuit protection (circuit breaker).
Visual Indicators:
- AC input and DC output LED indicators.
Temperature:
- Operating: -20° C to 49° C (-4° F to 120° F).
- Storage: – 20° C to 70° C ( – 4° F to 158° F).
-
BTU/Hr. (approx.):
6VDC: 8 BTU/Hr.
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr. -
System AC input VA requirement:
6VDC/12VDC: 55.2VA.
24VDC: 115VA.
Dimensions (approximate):
- 0″W x 0″L x 0″H (0 mm W x 0 mm L x 0 mm H).
Download:
- Installation Instruction
