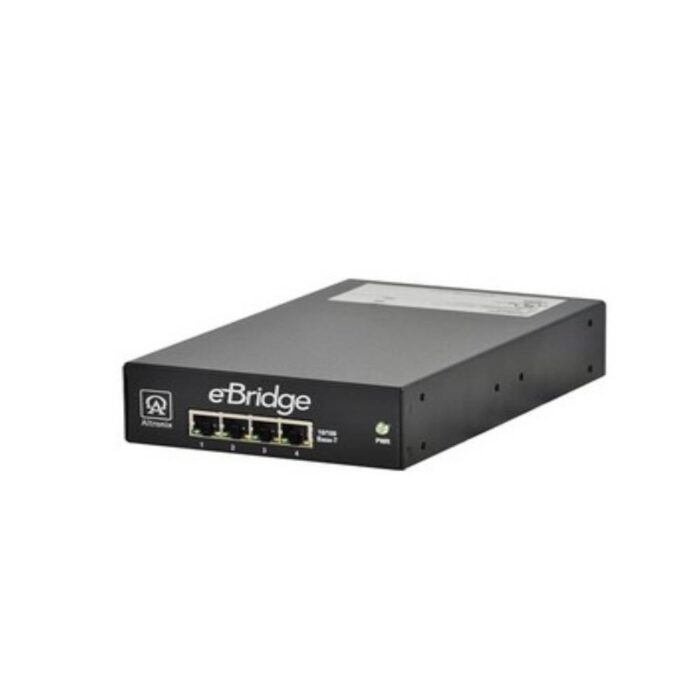

Altronix – EBRIDGE-4CR – IP Over Coax Receiver 4 port Incorporates Security Link Over Coax Technology
Altronix – EBRIDGE-4CR – IP Over Coax Receiver 4 port Incorporates Security Link Over Coax Technology
The eBridge4CR is a CAT5 to Coax cable Ethernet receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission over the Coax can be extended up to 610m (more than five times the 100m Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge4CR is to be used with a compatible Sony Hybrid cameras with “sloc” technology. An eBridge1CT is required for other IP cameras/devices.
Features:
- 24VDC to 56VDC UL Listed Class 2 power supply (polarity not observed) or UL Listed 24VAC Class 2 plug-in transformer.
- 24VDC/440mA, 56VDC/220mA, 24VAC/800mA.
- Four (4) ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
- Blue LED – Coax link connection.
- Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
- Green LED – Power.
Product Specifications:
| Vendor | Altronix Corporation |
| Manufacturer | Altronix |
| SKU | EBRIDGE4CR |
| UID | ALT100EBRIDGE4CR |
| Installation | Commercial |
| Unit of Measure | Each |
| Product Type | Power Over Ethernet (POE) Adaptors |
Download:
- Installation Instructions
