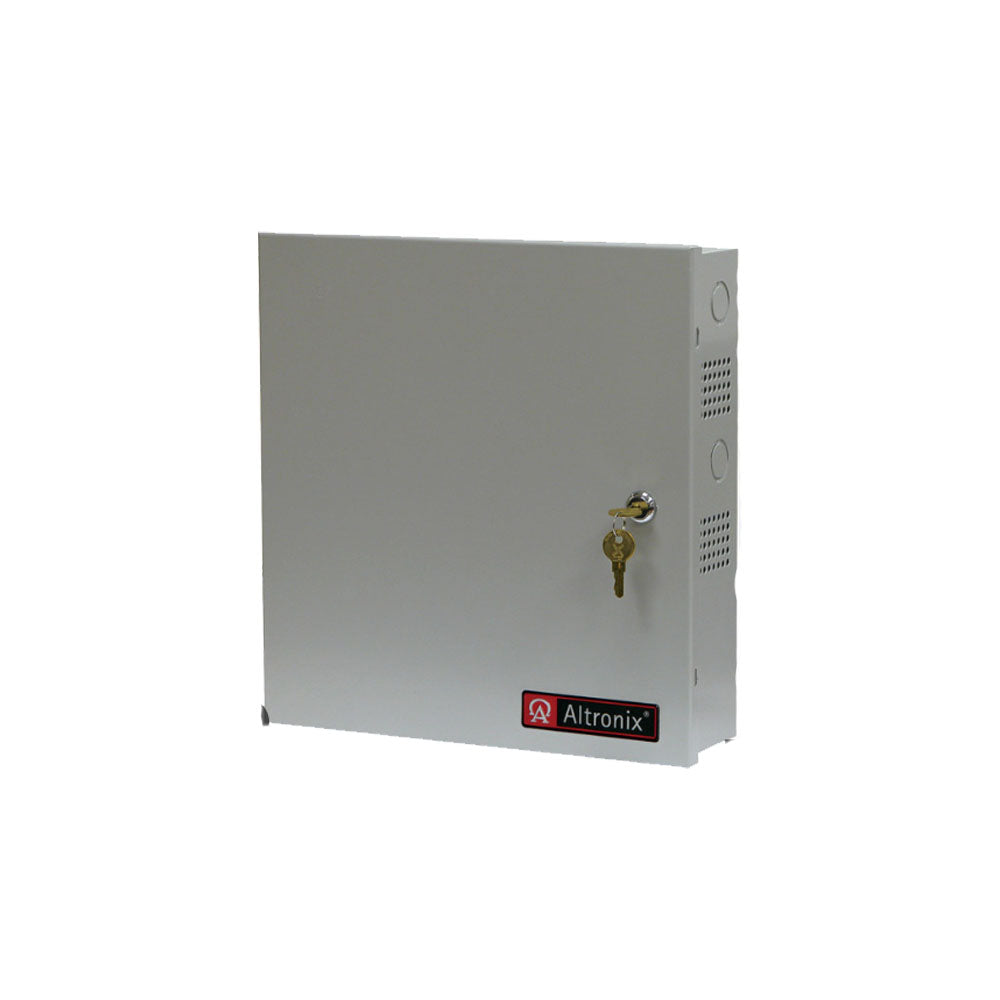

Altronix – AL600UL3 – Power Supply Charger with Grey Enclosure
Altronix – AL600UL3 – Power Supply Charger with Grey Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Input:
- Input 115VAC, 60Hz, 3.5A.
Output:
- 5VDC, 12VDC, 24VDC simultaneous outputs.
- 5VDC @ 1.75A continuous supply current.
- 12VDC @ 1.75A continuous supply current
- 24VDC @ 3A continuous supply current
- Two (2) Class 2 Rated PTC protected power limited outputs (5VDC and 12VDC outputs) and one (1) PTC protected output.
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection
Battery Backup:
- Built-in charger for sealed lead acid or gel type batteries
- Automatic switch over to stand-by battery when AC fails.
Supervision:
- AC fail supervision (form “C” contacts).
- Low battery supervision (form “C” contact).
- Battery presence supervision (form “C” contact).
Visual Indicators:
- AC input and DC output LED indicators.
Temperature:
- Operating 0° C to 49° C (32° F to 120° F)
- Storage: – 20° C to 70ºC ( – 4° F to 158° F)
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.): 52 BTU/Hr.
- System AC input VA requirement: 218.5VA
Enclosure:
- Wall mount enclosure for indoor use
- Accommodates up to two (2) 12VDC/12AH Batteries
- AL600UL3:Dimensions 13″W x 13.5″H x 3.25″D (330 mm W x 343 mm H x 83 mm D)
- AL600UL3X:Dimensions 12.25″W x 15.5″H x 4.5″D (311 mm W x 394 mm H x 114 mm D)
- 1.125″ and 1.375″ combination knockouts.
Download:
- Installation Instruction
