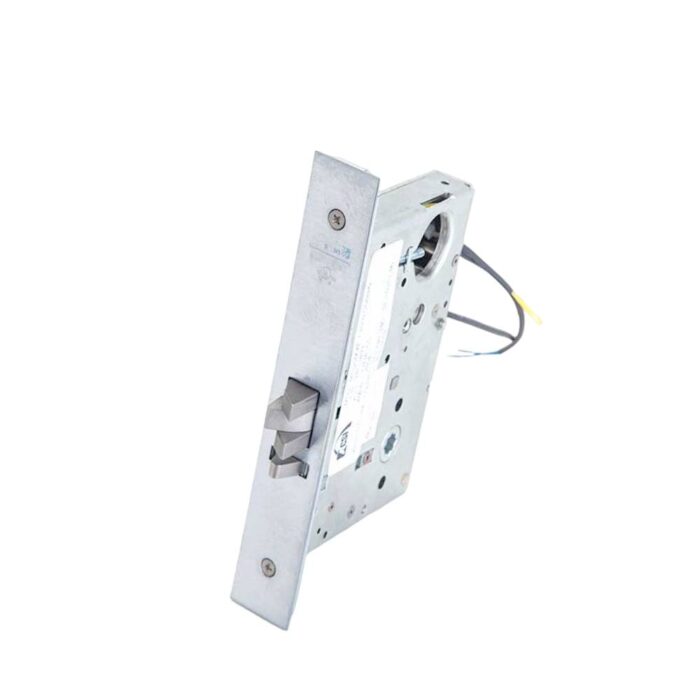

M1520M-AE-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Handed Authorized Egress. Corbin Russwin 2000 Series Classroom Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Authorized Egress (Request to Exit), Standard Control Locks Outside (Secure Side) Triim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-AE-1-ML2055 Corbin Russwin 2000 Series Office, Entry Mortise Lever Lock Fail Secure Motor Controlled Handed Authorized Egress for easy installation and dependable door hardware solution.
Specifications:
| Function | 1510M AE-Fail Safe w/Authorized Egress |
| Cylinder Type | Less Cylinder |
| Electric Options | Latchbolt Monitor |
| Product Type | Electronic Mortise Locks |
| Strike Type | ANSI Straight Lip |
| Strike Size | 4-7/8″ x 1-1/4″ |
| Lever Size | 4-1/2 Inch |
| Hub Size | 5/16 Inch |
| Hub Material | Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000, Operational and Security Grade 1, A117.1 Accessibility Code |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Offices; Schools; Hospitals; Hotels |
| Design | DS Lever Design, A Rose Design |
| Handed | Right Hand Left Hand |
| Finish | 625 – Bright Polished Chrome 26D – Satin Chrome |
| Front Size | 8″ x 1-1/4″ x 3/32″ |
| Strike Lip | 1-1/8 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8″ x 1″ |
| Latchbolt Type | 2-Piece Mechanical With Anti-Friction Insert |
| Manufacturer Parent | ACSI |
